IQ PRODUCTS: MODULATORS/DEMODULATORS
Orion Microwave Inc. offers Diode based IQ products, which covers frequency up to 18GHz: Bi Phase, IQ modulators/Demodulators, QPSK...
Model |
Frequency |
LO Drive |
Conversion |
Image Rej. |
Input IP3 | ||
|
RF (GHz) |
LO (GHz) |
IF (MHz) |
(dBm) |
Loss (dB) |
(dBm) Typ. |
(dBm) |
IQM0103C-X |
1.4-2.8 |
1.4-2.8 |
DC-500 |
+10 to +17 |
5.9 |
20 |
+13 to +21 |
IQM0204C-X |
2.0-4.0 |
2.0-4.0 |
DC-500 |
+9 to +17 |
5.9 |
22 |
+13 to +21 |
IQM0306C-X |
3.0-6.0 |
3.0-6.0 |
DC-500 |
+9 to +17 |
6.5 |
20 |
+13 to +21 |
IQM0510C-X |
5.6-10.2 |
5.6-10.2 |
DC-300 |
+10 to +17 |
5.8 |
20 |
+14 to +21 |
IQM0614C-X |
5.5-13.6 |
5.5-13.6 |
DC-500 |
+10 to +17 |
5.8 |
20 |
+14 to +21 |
IQM0918C-X |
9.0-18.0 |
9.0-18.0 |
DC-500 |
+10 to +17 |
6.5 |
18 |
+14 to +21 |
Notes:
1) Replace the last letter (X) of the model number with drive level (dBm):
B: +9 or +10 dBm
C: +13 dBm
E: +17 dBm
2) Image Rejection is measured with an external 90o IF Hybrid.
3) RF Bandwidth is about 25%. Contact us on other BW requirements.

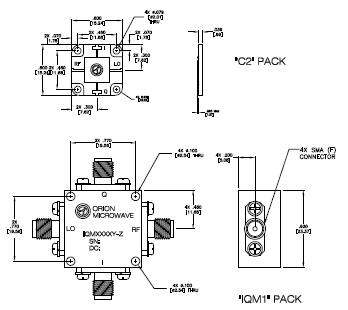

4) All of the IQ modulators are offered on Carrier and Connectorzied (SMA).
Custom performance & packages are available, conatct us for more info sales@orionmicrowave.com.
