LOW FREQUENCY / LUMPED ELEMENT ISOLATORS
|
Model |
Frequency |
I.L. |
Isolation |
VSWR |
Power |
Operating |
|
|
(MHz) |
(dB) |
(dB) |
|
(Watts) |
Temp. (ยบC) |
|
LI53S |
49-57 |
0.8 |
18 |
1.30 |
50 |
-10 to +70 |
|
LI62S |
54-60 |
0.8 |
18 |
1.25 |
50 |
-10 to +70 |
|
LI63S |
60-66 |
0.8 |
18 |
1.25 |
50 |
-10 to +70 |
|
LI69S |
66-72 |
0.8 |
18 |
1.25 |
50 |
-10 to +70 |
|
LI79S |
76-82 |
0.8 |
18 |
1.25 |
50 |
-10 to +70 |
|
LI85S |
82-88 |
0.8 |
18 |
1.25 |
50 |
-10 to +70 |
|
LI143S |
132-154 |
0.7 |
17 |
1.25 |
50 |
-10 to +70 |
|
LI153S |
132-174 |
0.9 |
15 |
1.35 |
50 |
-10 to +70 |
|
LI162S |
150-174 |
0.8 |
17 |
1.30 |
50 |
-10 to +70 |
|
LI188S |
175-200 |
0.7 |
18 |
1.25 |
50 |
-10 to +70 |
|
LI208S |
190-225 |
0.8 |
18 |
1.25 |
50 |
-10 to +70 |
|
LI313S |
225-400 |
1.0 |
17 |
1.30 |
50 |
-10 to +70 |
|
LI415S |
380-450 |
0.7 |
20 |
1.25 |
50 |
-10 to +70 |
Copyrighted @2007 Orion Microwave Inc. All right reserved.
On Time Delivery - High Performance - Competitive Pricing
Standard size: 2.00" X 2.00" X 0.75"
High Power Isolator (100 Watts or more) size: 3.00" X 3.50" X 1.00"
If you have any question or inquiry regarding Custom Specifications (Different Frequencies, Performance, Operating Temperature, Packages...), please contact sales@orionmicrowave.com for more information.

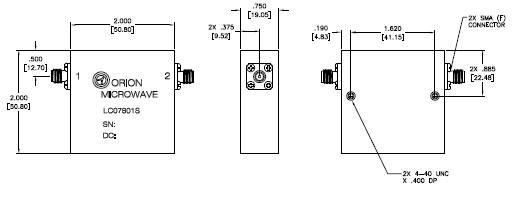

STANDARD PACKAGE
2.000" X 2.000" X 0.750"
